A safety valve secures individuals, the climate, and other plant resources from overpressure that may cause blasts or other harming functions. A safety valve opens naturally whenever a set weight is surpassed. Safety valves are last-asset gadgets that intercede when other insurance gadgets have fizzled. Safety valves might be spring or pilot worked.
WHAT IS A SAFETY VALVE?
A safety valve opens naturally and without a moment's delay whenever the weight of the liquid going through the valve goes over a set-pressure (in bars or psi).
At the point when an overpressure is recognized, the plate of the valve opens so it can release the liquid reestablish ordinary weight conditions in the funneling framework.
As the liquid weight diminishes under a set worth, the valve closes back once more. These developments are mechanical, for example there are no actuators or outside gadgets to the valve the execute the open/close tasks.
Safety valves might be introduced on pressure vessels, boilers, gas stockpiling tanks and in channeling frameworks.
The standards for safety valves are API 526 or ASME.
SAFETY VALVE VS. Weight RELIEF VALVE
At times, the terms safety valve and weight alleviation valve are utilized as equivalent words.
In any case, contrasts exist between safety versus pressure alleviation valves:
- A safety valve opens completely, and abruptly, as the set overpressure limit is reached by the gear (vessel, evaporator). Safety valves soothe the weight without the help of a regulator and an administrator.
- A weight help valve (called likewise, "PRV") is a weight discharge gadget mounted on a vessel loaded up with a liquid. The kickoff of the circle of a PRV valve is corresponding to the expansion in the vessel pressure (i.e., it's progressive) and not unexpected (like in a safety valve). Weight help valves by and large work through the mix of a weight regulator and an inciting component (which opens the valve plate relatively to the overpressure signal got by the regulator).
Reasons for VESSEL OVERPRESSURE
The weight in a vessel or a funneling framework can surpass an edge limit because of numerous reasons. The API 521 detail represents the run of the mill underlying drivers:
- Hindered release
- Compound response
- Cylinders and different gadgets crack
- Fire case (the gear is presented to outer fire)
- Warm extension
- Cooling framework disappointment
Every one of these unfriendly functions may happen independently or all the while and can make distinctive mass or volume of stream to be released, for example little mass stream for warm development and enormous mass stream if there should be an occurrence of a substance response.
The designing group will decide the most dire outcome imaginable for the measuring and determination of a reasonable weight alleviation gadget, thinking about the above elements.
SAFETY VALVE TYPES
There are three principle kinds of help valves:

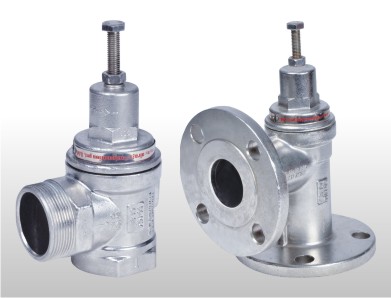

SPRING LOADED SAFETY VALVE
This is the most widely recognized sort: the heap of the spring is intended to press the "Circle" against the bay weight. As the weight surpasses a set worth, the spring opens delivering the circle and the liquid moving through the valve.
Contingent upon the liquid kind, for example, steam, gas or fluid, roars can be added to the spring to clear the back weight impact.
DEAD-WEIGHT SAFETY VALVE
Dead weight valves don't have a spring and are utilized for low-pressure vessels.
This kind of safety valve changes the weight by the activity of the plate weight (when the weight expands, the circle is lifted and the valve releases the overpressure).
Pilot-worked valves are made out of a "pilot valve" and a "fundamental valve".
Uniquely in contrast to spring worked valves, the weight is observed and changed by the pilot valve and not by the primary valve.
This sort is utilized for enormous size valve and high-pressure applications, that require more grounded force and dependability.
Weight help valves are accessible in most material evaluations from carbon steel to tempered steel and can oversee overpressure of any liquid (hydrocarbons, gas, steam or water).
For each sort of valve, several potential setups are really accessible (in view of the mixes of boundaries as valve type, sub-type, bore size, pressure rating, producing standard, body and trim materials, valve activity, and so on).
